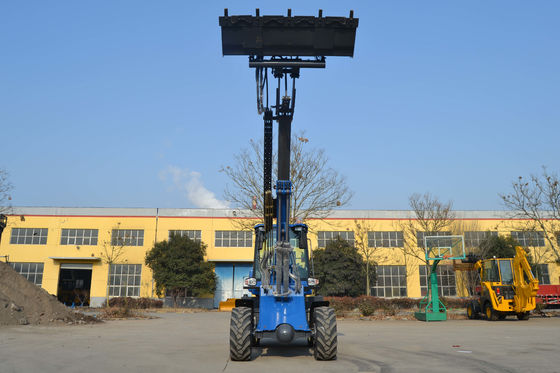

0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader

Place of Origin CHINA
Brand Name LGMC
Certification ORIGINAL or OEM
Model Number TL20T
Minimum Order Quantity 1PC
Price Negotiated price
Packaging Details Container
Delivery Time 5-15days
Payment Terms T/T, Western Union,Paypal, L/C
Supply Ability 600 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color YELLOW Engine Type YN25GB
Rated Power 37kw Rated Speed 2000r/min
Tire 3.5/70- 16 Bucket 0.65 M³
Max. Load 1500kg
High Light

0.65m3 Front Wheel Loader

,

YN25GB Engine Front Wheel Loader

,

2000r/min Front Wheel Loader

Leave a Message
Product Description

TL20T 4Ton Front Mini Wheel Loader for Telescopic Small Domestic Loader Small size wheel loader

TL20T 4Ton Front Mini Wheel Loader for Home Small Domestic Loader Small size wheel loader

Product Description:

· Place of Origin: China

· Model Number:TL20T

· Name:MINI WHEEL LOADEER

· Warranty: 3 Months

· Delivery: 30-45 Working Days

· Stock quantity: available



Packaging & Delivery :


Packaging Details: Container

Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.



DescriptionParameters




4.2ton
Telescopic Loader

Details as in the form
Yunnei 37KW engine with air pump,
Isuzu disc brake axle,
mechanical control,
rear view camera,
adjustable dash board and seat,
23.5/70- 16 herringbone tyre,
four wheel drive,
heater,
quick hitch,
Standard bucket with teeth,
full hydraulic torque converter


















LGE20

1.0 Engine4.0 Bucket:
(1) Brand/Model: Yunnei YN25GB (1) Capacity: 0.65 m³
(2) Type:In-line arrangement, water-cooled, four cylinder, diesel engine (2) Width: 1800mm
(3) Rated Power:37KW(3) Type:Heavy-duty bolt on teeth
(4) Optional Model:XINCHAI engine;(4) Max. Load:1500kg including bucket or attachment
 XICHAI engine;
 YANMAR engine;5.0 Operating Specifications
 EPA4/Euro4 HATZ engine;EPA4(1) Steering System:Articulated hydraulic steering
 EPA4 KOHLER engine;EPA4
 CUMMINS engine;EPA4(2) Driving System: Four wheel drive
2.0 Overall Dimensions(3) Hydraulic quick releaseYes
(1) Overall Length:5800mm
(2) Overall Width:1800mm(4) Mechanical pilot joystickYes
(3) Overall Height:2680mm
(4) Bucket hinge pin Height:4100mm(5) Steady riseYes
6.0 Brake System
(5) Telescopic stroke1100mm(1) Service Brake:Four wheel disc brake
 (2) Parking Brake:Disc brake
(6) Extend the arm length2950mm7.0 Tyre
 (1) Model:23.5/70- 16
(7) Bucket Max.lift height4700mm(2) Size:Width: 330mm Diameter: 920mm
 (3) Optional Model:31*15.5- 15 tubeless tire
(8) Bucket Max. unloading height3500mm8.0 Wheel base: 2355mm
 9.0 Track: 1415mm
3.0 Transmission System:10. System pressure:16Mpa
Gearbox+Hydraulic converter + Drive shaft + Isuzu axles(Disc brake)
 11. Weight:4200KG
Optional Hub reduction axle(Disc brake)

0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 0
0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 1
0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 20.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 30.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 40.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader 5

Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Tags:  heavy duty,agricultural,construction machinery,new construction equipment
