4.8km/H 5.85t Earth Mover Excavator YANMAR 4TNV94L Road Excavation Machinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Weight | 5.85t | Engine | YANMAR 4TNV94L |
|---|---|---|---|
| Blade | 1880mm×464mm | Boom | 3m |
| Arm | 1.6m | Bucket | 0.22m3 |
| High Light | 5.85t Earth Mover Excavator,4TNV94L Road Excavation Machinery |
||
Product Description

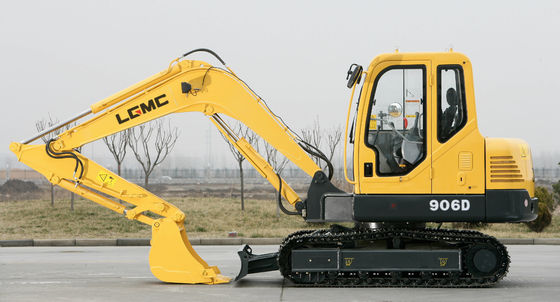

LGMC TE906 Hydraulic Crawler Excavator YANMAR 4TNV94L Engine Four-Cylinder In Line Natural Intake
Product Description:
· Place of Origin: China
· Model Number: TE906
· Name: MINI EXCAVATOR
· Warranty: 3 Months
· Delivery: 3-5 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
Lead Time: Shipped in 10day after payment
JCM906D Hydraulic Crawler Excavator’s Operating Weight is 5.85t, equipped with YANMAR 4TNV94L Engine, with Boom 3m, Arm 1.6m, Bucket 0.22m3, and Blade 1880mm×464mm.
Notice: Only after getting the permission of our company that the optional or special parts can be installed on the machine.
TE906 Hydraulic Crawler Excavator
Technical Specifications
| Engine | Travel System | ||||||
| Model | YANMAR 4TNV94L | Travel motors | JEIL, Korea; Variable axial piston motor | ||||
| Type |
Four-cylinder in line, natural intake |
Support roller quantities | 2×5 | ||||
| Carrier roller quantities | 2×1 | ||||||
| No. of cylinder | 4 | Travel shoes | 2×40 | ||||
| Bore and stroke | 94mm×110mm | Travel speed | 2.49/4.8km/h | ||||
| Displacement | 3.054L | Drawbar pulling force | 46.5kN | ||||
| Power output | 35.5kW/2200rpm | Grade ability | 58% (30°) | ||||
| Ground clearance | 360mm | ||||||
| Hydraulic System | Cab ＆ Control | ||||||
| Pump | REXROTH | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner | ||||
| Type | variable double–piston pump | ||||||
| Max. discharge flow | 2×60.5L/min | ||||||
| Max. discharge pressure | |||||||
| Boom, arm and bucket | 22MPa | Control |
Two hand levers and two foot pedals for travel Two hand levers for excavating and swing; Electric rotary-type engine throttle |
||||
| Travel circuit | 22MPa | ||||||
| Swing circuit | 21.5MPa | ||||||
| Control circuit | 4MPa | Boom, Arm ＆ Bucket | |||||
| Pilot control pump | Gear type | Boom cylinder | 115mm×60mm×720mm | ||||
| Main control valve | Negative flow control | Arm cylinder | 90mm×60mm×877mm | ||||
| Oil cooler | Air cooled type | Bucket cylinder | 85mm×55mm×600mm | ||||
| Swing System | Refilling Capacities＆lubrications | ||||||
| Swing motor | JEIL, Korea | Fuel tank | 110L | ||||
| Swing motor type | Axial-piston motor | Cooling system | 10L | ||||
| Brake | Hydraulic oil released | Engine oil | 12L | ||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 90L Tank oil level | ||||||
| Swing speed | 10.4r/min | 130L Hydraulic system | |||||||
| Bucket | |||||||||
| Type | Backhoe bucket | ||||||||
| Bucket capacity | 0.22m3 (SAE) | ||||||||
| Bucket width | 769mm | ||||||||
| Arm Type | |||||||||
| A | Max. digging depth | 5784mm | |||||||
| B | Max. dumping height | 3986mm | |||||||
| C | Max. digging height | 3858mm | |||||||
| D | Max. vertical digging depth | 3786mm | |||||||
| E | Max. Depth cut for 2440m(8')Level Bottom | 3449mm | |||||||
| F | Max. digging distance | 6195mm | |||||||
| G | Max. digging radius at ground level | 6062mm | |||||||
| H | Min. swing radius of work equipment | 2392mm | |||||||
| Digging Force (ISO6015) Unit: kN | |||||||||
| Arm length | 1600mm | ||||||||
| Bucket digging force | 39kN | ||||||||
| Arm digging force | 29.3kN | ||||||||
| Arm Type 1600mm | |||||||||
| A | Overall length | 5851mm | I | Tread | 1990mm | ||||
| B | Ground contact length (Transportation) | 3320mm | J | Track length | 2569mm | ||||
| C | Overall height(to top of boom) | 1932mm | K | Track gauge | 1480mm | ||||
| D | Overall width | 1880mm | L | Track width | 1880mm | ||||
| E | Overall height(to top of cab) | 2621mm | M | Shoe width | 400mm | ||||
| F | Counter weight ground clearance | 708mm | O | Bonnet height | 1633mm | ||||
| G | Ground clearance | 360mm | P | Revolving frame width | 1780mm | ||||
| H | Tail swing radius | 1655mm | Q | Distance from swivel center to tail | 1655mm | ||||
| Operating Weight and Ground Pressure | |
| Operating weight includes basic machine (with boom 3m, arm 1.6m, bucket 0.22m3, and blade 1880mm×464mm) | |
| Shoe width | 400mm |
| Overall width | 1880mm |
| Ground pressure | 33KPa |
| Operating weight | 5850kg |
Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Tags: drive motors,cartridge valves, swing motors,spinning form,versatility mini excavator
