20.5t Heavy Earth Moving Machinery In Mining With B5.9-C Engine

Place of Origin China
Brand Name LGMC
Certification ORIGINAL or OEM
Model Number TE921
Minimum Order Quantity 1PC
Price Negotiated price
Packaging Details Container
Delivery Time 5-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Weight 20.5t Engine CUMMINS B5.9-C
Power Output 112kW/1950rpm Boom 5.7m
Arm 2.925m Bucket 0.9m3
High Light

20.5t Heavy Earth Moving Machinery


B5.9-C Engine earth movers machines

Leave a Message
Product Description

LGMC TE921 Hydraulic Crawler Excavator CUMMINS B5.9-C Engine Water Cooling Turbocharged Empty Enter-Cooling


Product Description:


· Place of Origin: China

· Model Number: TE921


· Warranty: 3 Months

· Delivery: 3-5 Working Days

· Stock quantity: available


Packaging & Delivery :

Packaging Details: Container

Lead Time: Shipped in 10day after payment

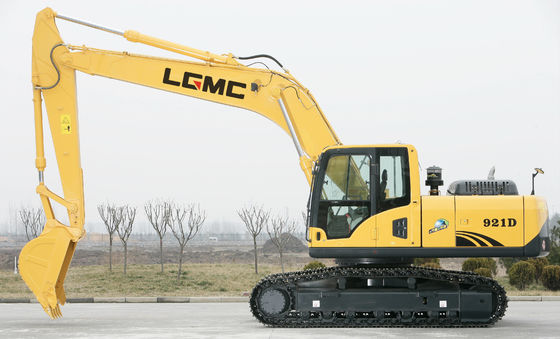

TE921 Hydraulic Crawler Excavator

Technical Specifications


921D Hydraulic Crawler Excavator’s Operating Weight is 20.5t, equipped with CUMMINS B5.9-C Engine, with Boom 5.7m, Arm 2.925m, Bucket 0.9m3.

Notice: Only after getting the permission of our company that the optional or special parts can be installed on the machine.


 Engine  Travel System
Model CUMMINS B5.9-C Travel motors JEIL, Korea; Variable axial piston motor
Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×7
Carrier roller quantities 2×2
No. of cylinder 6 Travel shoes 2×46
Bore and stroke 102mm×120mm Travel speed 3.3/5.4km/h
Displacement 5.9L Drawbar pulling force 167kN
Power output 112kW/1950rpm Grade ability 70% (35°)
Ground clearance 470mm
 Hydraulic System  Cab & Control
Pump DOOSAN, Korea Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner
Type variable double–piston pump
Max. discharge flow 2×215L/min
Max. discharge pressure
Boom, arm and bucket 31.9MPa Control

Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;

Electric rotary-type engine throttle

Travel circuit 31.9MPa
Swing circuit 25.5MPa
Control circuit 3.9MPa Boom, Arm & Bucket
Pilot control pump Gear type Boom cylinder 120mm×85mm×1285mm
Main control valve Negative flow control Arm cylinder 135mm×95mm×1490mm
Oil cooler Air cooled type Bucket cylinder 115mm×80mm×1120mm
 Swing System Refilling Capacities&lubrications
Swing motor JEIL, Korea Fuel tank 360L
Swing motor type Axial-piston motor Cooling system 25L
Brake Hydraulic oil released Engine oil 20L
Parking brake Hydraulic disc brake Hydraulic oil tank 250L Tank oil level
Swing speed 11.5r/min 420L Hydraulic system
Type Backhoe bucket
Bucket capacity 0.9m3 (SAE)
Bucket width 1230mm
Arm Type
A Max. digging depth 9281mm
B Max. dumping height 6480mm
C Max. digging height 6605mm
D Max. vertical digging depth 5735mm
E Max. Depth cut for 2440m(8')Level Bottom 6404mm
F Max. digging distance 9845mm
G Max. digging radius at ground level 9671mm
H Min. swing radius of work equipment 3500mm
Digging Force (ISO6015) Unit: kN
Arm length 2925mm
Bucket digging force 115kN
Arm digging force 92.5kN
Arm Type 2925mm
A Overall length 9548mm I Tread 3360mm
B Ground contact length (Transportation) 4947mm J Track length 4160mm
C Overall height(to top of boom) 3120mm K Track gauge 2200mm
D Overall width 2800mm L Track width 2800mm
E Overall height(to top of cab) 2977mm M Shoe width 600mm
F Counter weight ground clearance 1120mm O Bonnet height 2375mm
G Ground clearance 470mm P Revolving frame width 2726mm
H Tail swing radius 2905mm Q Distance from swivel center to tail 2853mm
 Operating Weight and Ground Pressure
Operating weight includes basic machine (with boom 5.7m, arm 2.925m, and bucket 0.9m3)
Shoe width 600mm
Overall width 2800mm
Ground pressure 45KPa
Operating weight 20500kg

20.5t  Heavy Earth Moving Machinery In Mining With B5.9-C Engine 0

Our advantages :

1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.


Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
