112kW 1950rpm Small Mini Excavator With CUMMINS B5.9-C Engine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Operating Weight||21.6t||Engine||CUMMINS B5.9-C|
1950rpm Small Mini Excavator,
112kW crawler mini excavator
LGMC TE922 Hydraulic Crawler Excavator CUMMINS B5.9-C Engine Water Cooling 250L Tank Oil Level 420L Hydraulic System
· Place of Origin: China
· Model Number: TE922
· Name: MINI EXCAVATOR
· Warranty: 3 Months
· Delivery: 3-5 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Lead Time: Shipped in 10day after payment

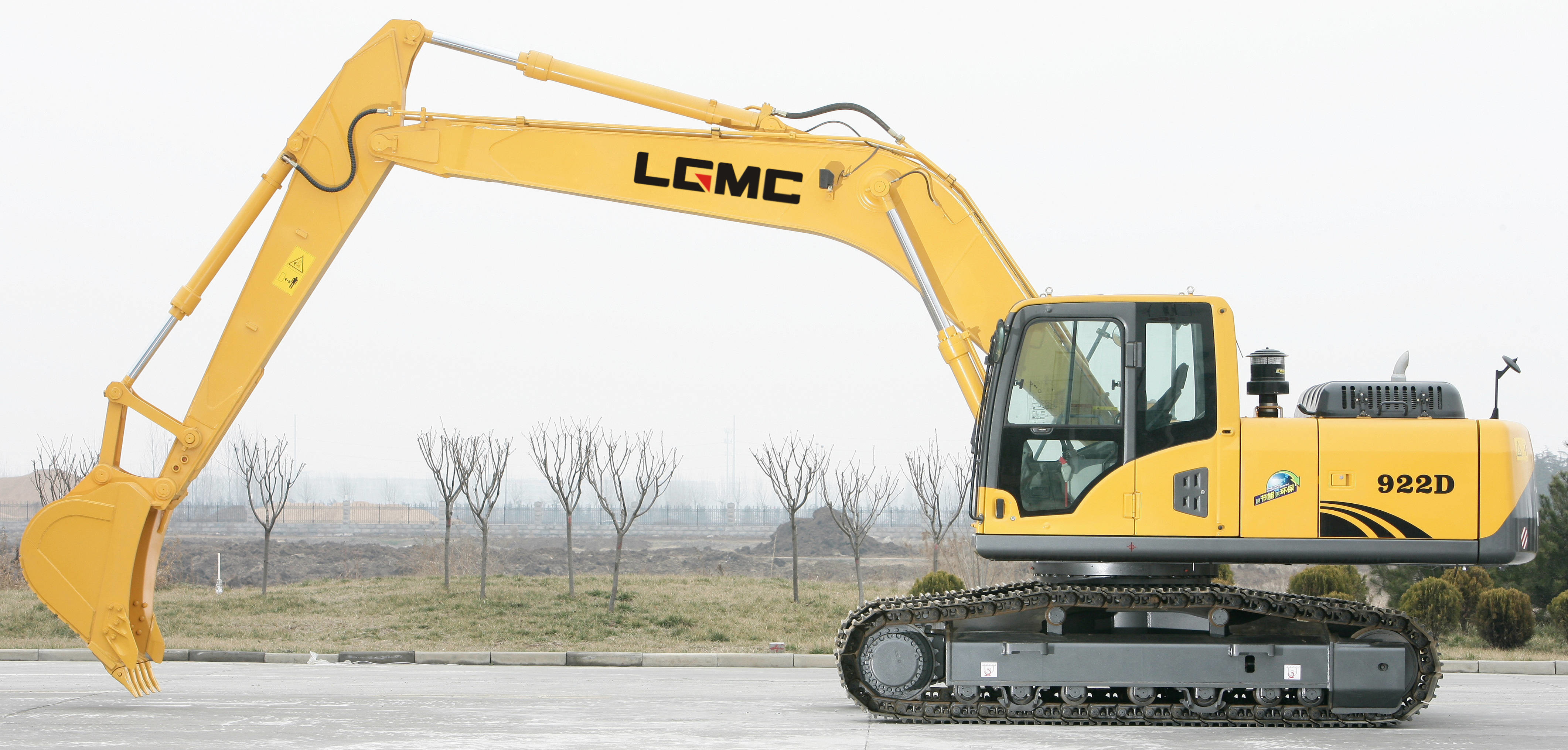

TE922 Hydraulic Crawler Excavator
922D Hydraulic Crawler Excavator’s Operating Weight is 21.6t, equipped with CUMMINS B5.9-C Engine, with Boom 5.7m, Arm 2.925m, Bucket 1.0m3.
Notice: Only after getting the permission of our company that the optional or special parts can be installed on the machine.
|Model||CUMMINS B5.9-C||Travel motors||DOOSAN/NABTESCO; Variable axial piston motor|
|Type||Water cooling, turbocharged, empty enter-cooling||Support roller quantities||2×7|
|Carrier roller quantities||2×2|
|No. of cylinder||6||Travel shoes||2×46|
|Bore and stroke||102mm×120mm||Travel speed||3.3/5.4 km/h|
|Displacement||5.9L||Drawbar pulling force||201kN|
|Power output||112kW/1950rpm||Grade ability||70% (35°)|
|Hydraulic System||Cab ＆ Control|
|Pump||KAWASAKI, Japan||Cab||All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner|
|Type||variable double–piston pump|
|Max. discharge flow||2×208L/min|
|Max. discharge pressure|
|Boom, arm and bucket||31.9MPa||Control||
Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;
Electric rotary-type engine throttle
|Control circuit||3.9MPa||Boom, Arm ＆ Bucket|
|Pilot control pump||Gear type||Boom cylinder||120mm×85mm×1285mm|
|Main control valve||Negative flow control||Arm cylinder||135mm×95mm×1490mm|
|Oil cooler||Air cooled type||Bucket cylinder||115mm×80mm×1120mm|
|Swing System||Refilling Capacities＆lubrications|
|Swing motor||KAWASAKI, Japan||Fuel tank||360L|
|Swing motor type||Axial-piston motor||Cooling system||25L|
|Brake||Hydraulic oil released||Engine oil||20L|
|Parking brake||Hydraulic disc brake||Hydraulic oil tank||250L Tank oil level|
|Swing speed||11.9r/min||420L Hydraulic system|
|Bucket capacity||1.0m3 (SAE)|
|A||Max. digging depth||9281mm|
|B||Max. dumping height||6480mm|
|C||Max. digging height||6605mm|
|D||Max. vertical digging depth||5735mm|
|E||Max. Depth cut for 2440m(8')Level Bottom||6404mm|
|F||Max. digging distance||9845mm|
|G||Max. digging radius at ground level||9671mm|
|H||Min. swing radius of work equipment||3500mm|
|Digging Force (ISO6015) Unit: kN|
|Bucket digging force||115kN|
|Arm digging force||92.5kN|
|Arm Type 2925mm|
|B||Ground contact length (Transportation)||4947mm||J||Track length||4160mm|
|C||Overall height(to top of boom)||3135mm||K||Track gauge||2200mm|
|D||Overall width||2800mm||L||Track width||2800mm|
|E||Overall height(to top of cab)||2965mm||M||Shoe width||600mm|
|F||Counter weight ground clearance||1120mm||O||Bonnet height||2375mm|
|G||Ground clearance||470mm||P||Revolving frame width||2726mm|
|H||Tail swing radius||2905mm||Q||Distance from swivel center to tail||2853mm|
|Operating Weight and Ground Pressure|
|Operating weight includes basic machine (with boom 5.7m, arm 2.925m, and bucket 1.0m3)|
