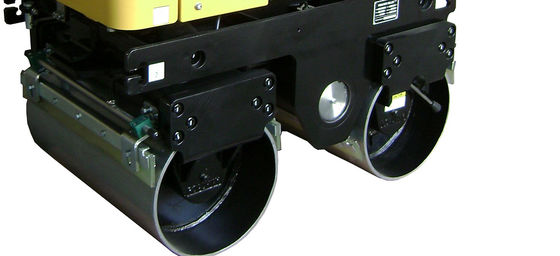

YL34 820kg Road Construction Roller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | YELLOW | Engine | HONDA, GX390 |
|---|---|---|---|
| Type | Diesel Engine, Air Cooled, 4stroke, Vertical Type, Single Cylinder | Power | 6.0hp/3600rpm |
| Fuel Consumption | 313g/kWh | Working Weight | 820kg |
| Packing Size | 1460x810x1910mm | ||
| High Light | 820kg Road Construction Roller,6Hp Road Construction Roller,820kg walk behind roller compactor |
||
Product Description
YL34 LGMC HONDA GX390 Gasoline Engine Walk Behind Double Drums Road Roller Compress On The Asphalt Sand Soil And Gravel
Product Description:
· Place of Origin: China
· Model Number:YL34
· Name: Backhoe Loader Machine
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn and playground.
1.Honda gasoline engine KIPOR Diesel Engine, excellent performance, easy to start-up;
2.SAUER brand variable pump, fixed displacement motor, steppless speed, easy to change direction;
3.Adjusting height mechanism of handrail, storage erectly, easy to transport;
4.NSK bearing and MITSUBOSHI V-belt;
5.Electric starting, Electromagnetism clutch controlling vibration, easy to operate;
6.Hydraulic system controlling Steering gear, efficient, convenient;
7.Plastic treated, anti-rust, anti-corrosion and beautiful.
8.Have passed CE certificate
| Type | YL34 | YL34C |
| Price(Ex-factory) | ||
| Run | ||
| Speed | 0—3.5km/h (Forward and back) | |
| Turning angle | 15° | |
| Climbing capacity in theory | 25% | |
| Compaction | ||
| Static load forward/back | 50.2/52.2N/cm | 52/54N/cm |
| Nominal amplitude | 0.5mm | |
| Vibration frequency | 60Hz | |
| Exciting force | 17kN | |
| Water tank volume | 25L | |
| Working | ||
| Drive |
Variable plunger pump ,constant displacement hydraulic motor |
|
| Vibration | Mechanical drive, electromagnetic clutch | |
| Turning | Hydraulic ram | |
| Stop braking | Mechanical lock bolt | |
| Engine | ||
| Model | HONDA, GX390 | KIPOR, 178F |
| Type |
Gasoline engine, air cooled, 4stroke, OHV, single cylinder |
Diesel engine, air cooled, 4stroke, vertical type, single cylinder |
| Power | 13.0hp/3600rpm | 6.0hp/3600rpm |
| Fuel tank volume | 6.5L | 5.5L |
| Lubricant L | 1.1L | 1.7L |
| Fuel consumption | 313g/kWh | 280g/kWh |
| Dimension | ||
| Width of steel wheel | 650mm | |
| Diameter of steel wheel | 355mm | |
| Tread | 650mm | |
| Total length(keep handrail level) | 2460mm | |
| Total width | 680mm | |
| Total height(keep handrail upright) | 1800mm | |
| Packing size | 1460x810x1910mm | |
| Weight | ||
| Working weight | 820kg | 840kg |
