GR8100 5km/H 7t Construction Motor Grader Agricultural Heavy Machinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Model | Cummins 4BT3.9 | Rated Power/Speed | 75/2400kw/rpm |
|---|---|---|---|
| Dimension | 6880x2375x3150mm | Operating Weight | 7000kg |
| Max. Lift Height | 300mm | Max. Cutting Depth | 350mm |
| High Light | 7t construction motor grader,5km/h construction motor grader,7t agricultural heavy machinery |
||
Product Description

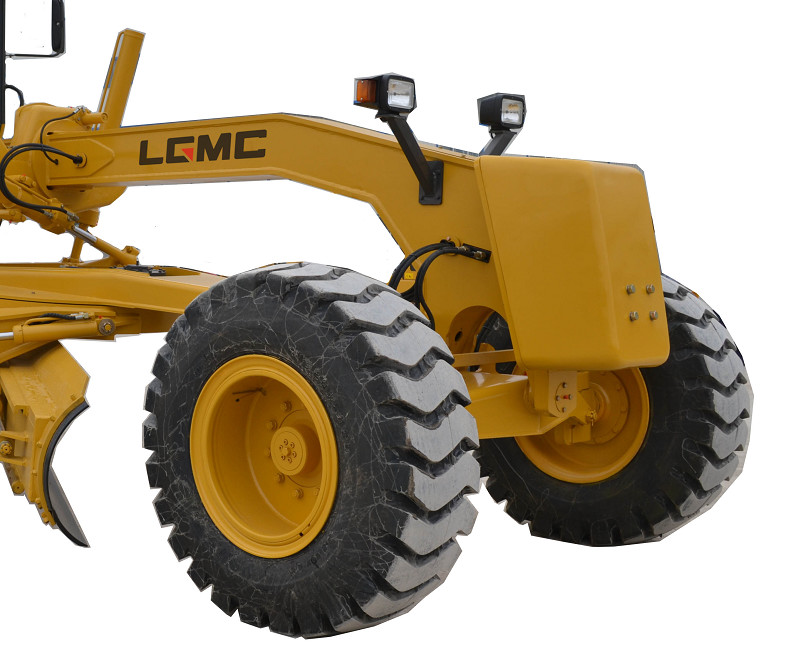

LGMC GR8100 Motor Grader 4BT3.9 Cummins Engine Diesel Engines Turbocharged Water-Cooled With Powerful Energy
Product Description:
· Place of Origin: China
· Model Number: GR8100
· Name: Construction Motor Grader
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Motor grader is suitable for large-scaled and leveling in foundation constructions. Our hydraulic motor graders can be used for ditching /grading / slope scraping/ bulldozing/ ripping/ virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and far
| Model | GR100 | |||
| Basic Specification | Engine Model | 4BT3.9 | ||
| Rated Power/Speed | kw/rpm | 75/2400 | ||
| Dimension | mm | 6880x2375x3150 | ||
| Operating Weight | kg | 7000 | ||
| Performance Specification | Travelling Speed, Forward | km/h | 5,10,20,40 | |
| Travelling Speed, Reverse | km/h | 8.25 | ||
| Tractive Force | KN | 41.6 | ||
| Max. Grade ability | % | 20 | ||
| Tire Inflation Pressure | Kpa | 350 | ||
| Working Hydraulic Pressure | Mpa | 16 | ||
| Transmission Pressure | Mpa | 1.3~1.8 | ||
| Operating Specification | Max. Lean Angle of Front Wheels | ° | ±50 | |
| Max. Oscillation Angle of Front Axles | ° | ±17 | ||
| Max. Oscillation Angle of Balance Box | ° | ±15 | ||
| Frame Articulation Angle | ° | |||
| Max. Lean Angle of Front Wheels | ° | ±27 | ||
| Min. Turning Radius | m | 5.9 | ||
| Blade | Max. Lift Height | mm | 300 | |
| Max. Cutting Depth | mm | 350 | ||
| Max. Blade Position Angle | ° | 45 | ||
| Blade Cutting Angle | ° | 28-70 | ||
| Circle Reversing Rotation | ° | 120 | ||
| Moldboard Width*Height | mm | 3048x500 | ||
