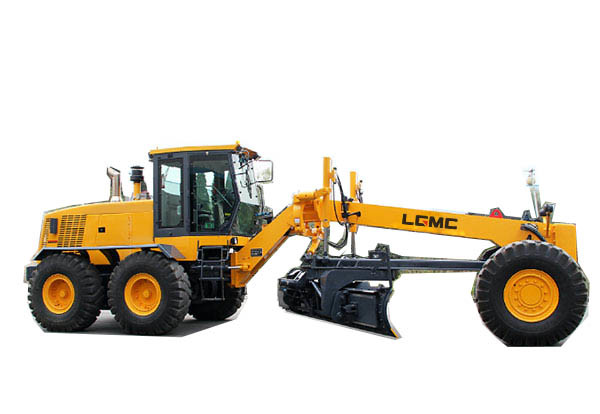

GR8135 11ton 42km/H Grader Road Construction Machine For Road
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Model | Cummins 6BT5.9 | Rated Power/Speed | 100/2200kw/rpm |
|---|---|---|---|
| Dimension | 8015x2380x3050mm | Operating Weight | 11000kg |
| Max. Lift Height | 410mm | Max. Cutting Depth | 535mm |
| High Light | 11ton grader road construction,42km/h grader road construction,11ton road construction machinery |
||
Product Description
LGMC GR8135 Motor Grader 6BT5.9 Cummins Engine Diesel Engines Turbocharged Water-Cooled With Powerful Energy
Product Description:
· Place of Origin: China
· Model Number:GR8135
· Name: Construction Motor Grader
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Motor grader is suitable for large-scaled and leveling in foundation constructions. Our hydraulic motor graders can be used for ditching /grading / slope scraping/ bulldozing/ ripping/ virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
It can complete the important content field of highway, farmland and other large areas of ground leveling and ditching, scraping slope, bulldozing, snow, loose, compaction, cloth, mixing, help to load and open land and other work. It is an important equipment in national defense engineering, mine construction, road construction, water conservancy construction and farmland impro
| Model | GR135 | |||
| Basic Specification | Engine Model | 6BT5.9 | ||
| Rated Power/Speed | kw/rpm | 100/2200 | ||
| Dimension | mm | 8015x2380x3050 | ||
| Operating Weight | kg | 11000 | ||
| Performance Specification | Travelling Speed, Forward | km/h | 5,8,13,20,30,42 | |
| Travelling Speed, Reverse | km/h | 5,13,30 | ||
| Tractive Force | KN | 61.3 | ||
| Max. Grade ability | % | 20 | ||
| Tire Inflation Pressure | Kpa | 300 | ||
| Working Hydraulic Pressure | Mpa | 16 | ||
| Transmission Pressure | Mpa | 1.3~1.8 | ||
| Operating Specification | Max. Steering Angle for Front Wheels | ° | ±49 | |
| Max. Lean Angel of Front Wheels | ° | ±17 | ||
| Max. Oscillation Angel of Front Axles | ° | ±15 | ||
| Max. Oscillation Angle of Balance Box | ° | 前后16 | ||
| Frame Articulation Angle | ° | ±27 | ||
| Min. Turning Radius | m | 6.6 | ||
| Blade | Max. Lift Height | mm | 410 | |
| Max. Cutting Depth | mm | 535 | ||
| Max. Blade Position Angle | ° | 90 | ||
| Blade Cutting Angle | ° | 54-90 | ||
| Circle Reversing Rotation | ° | 360 | ||
| Moldboard Width*Height | mm | 3710x610 | ||
