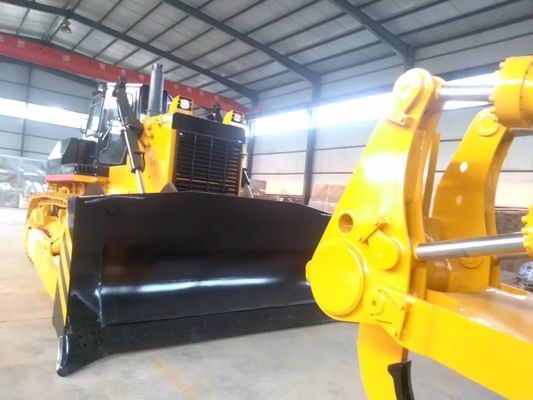

HD32 238HP Construction Bulldozer Crawler Construction Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | YELLOW | Engine | Cummins NT855-C280S10 |
|---|---|---|---|
| Operating Weight | 37200 Kg | Dimension | 6880×4130×3725 Mm |
| Fuel Consumption | 245 G/kW·h | Max Lift Above Ground | 965mm |
| Rated Power | 257 KW (238HP) /2000 Rpm | ||
| High Light | HD32 construction bulldozer,238HP construction bulldozer,HD32 crawler construction equipment |
||
Product Description
LGMC HD32 Dozer With Cummins NTA855-C360S10 diesel Engine Water-cooled In-line overhead valve direct injection
Product Description:
· Place of Origin: China
· Model Number:HD32
· Name: Construction Bulldozer
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Bulldozer is a kind of multi-purpose self-moving earthwork construction machinery, which can shovel and transport soil. For example, in the road construction,bulldozer can complete the treatment of subgrade foundation, the lateral filling height of embankment is not more than 1m, the subgrade excavation and filling project along the road center line to shovel and transport soil, and the subgrade with half embankment and half cutting along the mountain. In addition, bulldozer can also be used to level the site, pile up loose materials, remove obstacles in the operating area, and so on.
| Overall | Dimension | 6880×4130×3725 mm | ||
| Operating Weight | 37200 kg | |||
| ENGINE | Model | Cummins NTA855-C360S10 | ||
| Type | Water-cooled, In-line, overhead valve direct injection, turbocharged diesel | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ139.7×152.4 mm | |||
| Piston Displacement | 14.01 L | |||
| Rated Power | 257 KW (238HP) @2000 rpm | |||
| Max Torque | 1440 N·m @1400 rpm | |||
| Fuel Consumption | 245 g/kW·h | |||
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.6 km/h | 0~11.5 km/h | |
| Reverse | 0~4.4 km/h | 0~7.8 km/h | 0~13.5 km/h | |
UNDERCARRIAGE SYSTEM |
Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 7 each side | |||
| No. of Track Shoes | 41 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 560 mm | |||
| Pitch | 228.6 mm | |||
| Track Gauge | 2140 mm | |||
| Ground Pressure | 0.105 Mpa | |||
| SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 355 L/Min | |||
| Bore of Working Cylinder | 140 mm × 2 | |||
BLADE |
Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 10 m³ | 6 m³ | 11.9 m³ | |
| Blade Width | 4130 mm | 5000 mm | 4130 mm | |
| Blade Height | 1590 mm | 1140 mm | 1710 mm | |
| Max Drop Below Ground | 560 mm | 630 mm | 560 mm | |
| MaxTilt Adjustment | 1000 mm | 500 mm | 1000 mm | |
| THREE SHANK RIPPER | Max digging depth | 842 mm | ||
| Max lift above ground | 883 mm | |||
| Weight of 3-shank ripper | 3802 kg | |||
| SINGLE SHANK RIPPER | Max digging depth | 1250 mm | ||
| Max lift above ground | 965 mm | |||
| Weight of 1-shank ripper | 3252 kg | |||
