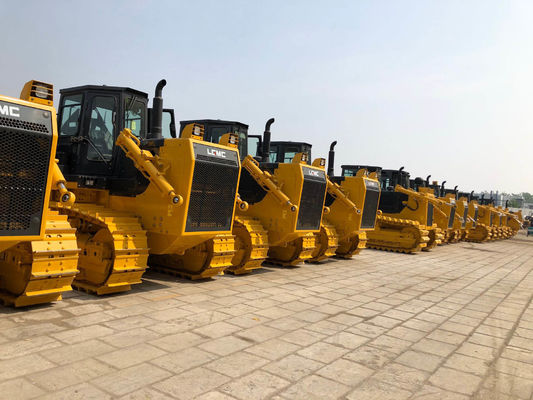

SD16L Dozer 18400kg Construction Dozer Heavy Road Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | YELLOW | Engine | WD10(China-II)/WP10(China-III) |
|---|---|---|---|
| Operating Weight | 18400kg | Dimension | 5262*4150*3074 Mm |
| Ground Length（mm） | 2935 | Fuel Tank (L) | 315 |
| Rated Power/rated Speed (kW/rpm) | 131/1850 | ||
| High Light | SD16L construction dozer,18400kg construction dozer,SD16L heavy road equipment |
||
Product Description
LGMC SD16L Dozer With WD10 China-II WP10 China-III Diesel Engine 131/1850 kW/rpm Super-wetland version Straight Tilting
Product Description:
· Place of Origin: China
· Model Number:SD16L
· Name: Construction Bulldozer
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
SD16L hydraulic bulldozer has the characteristics of high science and technology content, advanced and reasonable design, strong power, high production efficiency, can adapt to the harsh working environment, convenient maintenance, mainly suitable for farmland, water conservancy, highway, railway, airport and other ground to push, excavate, backfill earthwork and other bulk material operations. It is indispensable machinery and equipment for national defense projects, urban and rural road construction and water conservancy construction.
Power System
● The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
● The rated power reaches 131kW, featuring high torque reserve coefficient.
● The radially sealed intake system is applied to effectively prolong the engine life.
Drive system
● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
Easy maintenances
● The structural parts inherit the excellent quality of Shantui’s mature products;
● The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
● The openable large-space side hoods make the repairs and maintenance easier.
● The fuel filter element and the air filter are designed on one same side to achieve one-stop；
| Parameter name | SD16 (Standard version) | SD16C (Coal version) | SD16E (Extended version) | SD16L(Super-wetland version) | SD16R (Environmental sanitation version) | SD16D (Desert version) |
| Performance parameters | ||||||
| Operating weight (Kg) | 17000 | 17500 | 17346 | 18400 | 18400 | 18200 |
| Ground pressure (kPa) | 58 | 50 | 55 | 25 | 25 | 33.2 |
| Engine | ||||||
| Engine model | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) |
| Rated power/rated speed (kW/rpm) | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 |
| Overall dimensions | ||||||
| Overall dimensions of machine (mm) | 5140*3388*3032 | 5427*3900*3032 | 5345*3388*3032 | 5262*4150*3074 | 5262*4150*3074 | 5262*4150*3074 |
| Driving performance | ||||||
| Forward speed (km/h) | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 |
| Reversing speed (km/h) | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 |
| Chassis System | ||||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 2300 | 2300 | 2300 |
| Width of track shoes (mm) | 510/560/610 | 610 | 560/510/610 | 1100/950 | 1100/660 | 810 |
| Ground length(mm) | 2430 | 2430 | 2635 | 2935 | 2935 | 2935 |
| Tank capacity | ||||||
| Fuel tank (L) | 315 | 315 | 315 | 315 | 315 | 315 |
| Working device | ||||||
| Blade type | Angle Blade, Straight tilting blade and U-shaped Blade | Coal blade | Angle Blade, Straight tilting blade and U-shaped Blade | Straight tilting blade | Sanitation blade | Straight tilting blade |
| Digging depth (mm) | 540 | 540 | 540 | 485 | 485 | 485 |
| Ripper type | Three-tooth ripper | —— | Three-tooth ripper | —— | —— | —— |
| Ripping depth (mm) | 570 | —— | 570 | —— | —— | —— |
