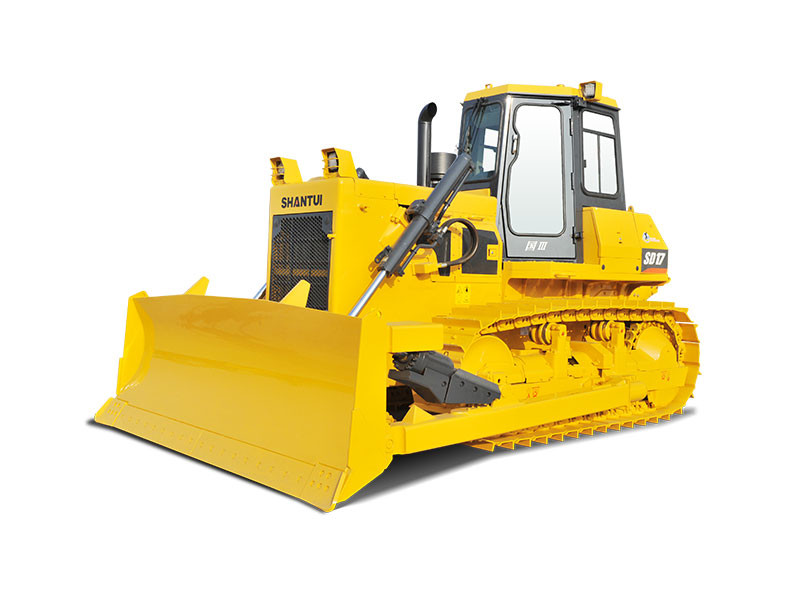

SD17 17tom Crawler Dozer Road Work Machinery With WP10 Engine

Place of Origin CHINA
Brand Name LGMC
Certification ORIGINAL or OEM
Model Number SD17
Minimum Order Quantity 1PC
Price Negotiated price
Packaging Details Container
Delivery Time 10-15days
Payment Terms T/T, Western Union,Paypal, L/C
Supply Ability 50 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Color YELLOW Engine WP10(China-III)
Operating Weight 17000kg Minimum Ground Clearance 400mm
Climbing Performance 30° Single Shovel Capacity 4.5 M3
Maximum Lifting Height Of Shovel Knife 1095mm
High Light

SD17 crawler dozer


17tom crawler dozer


SD17 road work machinery

Leave a Message
Product Description

LGMC SD17 Crawler Dozer With Weicchai WP10 China-III Diesel Engine Forced Lubrication Gearbox Splash Lubrication Form

Product Description:

· Place of Origin: China

· Model Number:SD17

· Name: Construction Bulldozer

· Warranty: 3 Months

· Delivery: 10-15 Working Days

· Stock quantity: available


Packaging & Delivery :

Packaging Details: Container

Power system
● Adopt Weichai WP10 engine, power is sufficient, easy to maintain, with high combustion efficiency and environmental friendly characteristics, in line with the Ⅲ emission standards.
Transmission system
● Planetary power shift, forced lubrication gearbox, hydraulic power steering system makes the machine easy to operate, with higher transmission power and high production efficiency.
● Three components single stage single phase hydraulic torque converter, the structure is simple and reliable, improve the automatic adaptability of the machine, the power will be smoothly transferred to the transmission system, can effectively protect the transmission system, and improve the bulldozer operation comfort and comfort.
● Central transmission, using spiral bevel gear, a reduction, splash lubrication form.
● Steering clutch, using wet, multi - plate spring compression, hydraulic separation, manual - hydraulic operation; Steering Brake: Adopt wet type, floating belt type, hydraulic power assist form.
Chassis system
● Swing beam, balanced beam suspension structure, connected with the frame and walking system, can transfer the working load and impact load to the main frame, effectively improve the stability of small bulldozer in complex working conditions.
● When the construction site is not smooth, ensure that the platform frame relative swing up and down, reduce vibration, in order to protect the machine.
Cooling system
● Closed system, make the water tank pressure to maintain a specific value, can improve the evaporation temperature of cooling water and heat dissipation efficiency. The fan is powered by the engine, forcing air supply to enhance cooling.
Electrical system
● The new design of the instrument box, sealing, key operation comfort is improved, the use of color display intelligent instrument, with automatic fault detection, the operation of the main components and oil temperature, oil level, water temperature, oil pressure and other parameters to achieve electronic monitoring and over-limit alarm, can achieve automatic fault diagnosis and display.
● Integrated design of air conditioning and instrument, built-in air conditioning duct, improve refrigeration and heating effect.
The cab
● The new design of the cab, the labyrinth sealing structure, the beauty, comfort, sealing effectively improved, the floor frame, instrument box, cab integrated installation, synchronous shock absorption, reliability improvement.
● Optimized lighting system provides a good guarantee for night work;

major parameter
Minimum ground clearance 400mm
The use of weight 17000kg
Ground pressure 0.067MPa
Climbing performance 30°
Center distance of track 1880mm
Single shovel capacity 4.5 m3
Spade width/height 3388/1149mm
Maximum depth of cutter cutting 540mm
Maximum lifting height of shovel knife 1095mm
Maximum depth of drop of loafer 5360mm
Maximum lifting height of soil looser 592mm

SD17 17tom Crawler Dozer Road Work Machinery With WP10 Engine 0

Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
