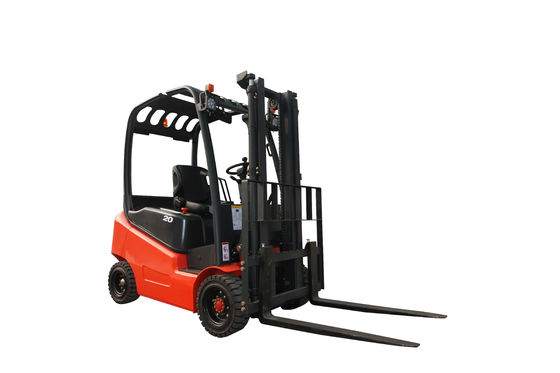

CPD20E 2t Logistics Forklift Transporting Heavy Machinery

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Load | 2000KG | Driving Motor Power | 7.5AC |
---|---|---|---|
Whole Machine Weight | 3200KG | Hand Brake | Hydraulic Pedal |
Brake Type | M-Hand | Free Lifting Height | 80 |
High Light | CPD20E Logistics Forklift,2t Logistics Forklift,CPD20E transporting heavy machinery |
· Place of Origin: China
· Model Number: CPD20E
· Name: Electrical Forklift
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Electrical Forklift electric motor is the driving force and the battery is the energy source. Since each battery generally needs to be charged after about 8 hours of work, backup batteries are required for multi-shift working conditions.The emergency stop switch is located above the instrument panel. Press the button and the forklift will brake immediately and stop all actions. The operation is safe. At the same time, the red button in the middle of the control handle is the automatic return compound brake button. When the body touches the button in an emergency, the forklift will brake immediately and back a short distance to protect the driver. The long arm tiller ensures that the driver does not have to work close to the forklift and reduces the risk of the driver's heel touching the chassis.
ELECTRICAL FORKLIFT SPECIFICATIONS | |||||||||||||||
Model | CPD750 | CPD10F | CPD10E | CPD15 | CPD16 | CPD18F | CPD18E | CPD20H | CPD20E | CPD20 | CPD25 | CPD30 | CPD35 | ||
Power type | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | Battery | ||
Rated load | KG | 500-750 | 800-1000 | 1000 | 1500 | 1600 | 1600-1800 | 1800 | 2000 | 2000 | 2000 | 2500 | 3000 | 3500 | |
Load center distance | mm | 300 | 400 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Driving type | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | Seat | ||
Length | With fork L1 | mm | 2040 | 2560 | 2560 | 3040 | 3040 | 3040 | 3120 | 3120 | 3120 | 3380 | 3380 | 3630 | 3664 |
Without fork L2 | 1400 | 1640 | 1640 | 1970 | 1970 | 1970 | 2050 | 2050 | 2050 | 2310 | 2310 | 2570 | 2570 | ||
Whole Width B | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1050 | 1050 | 1050 | 1150 | 1150 | 1243 | 1243 | ||
Height | Height no lifting frame H1 | 1680 | 2050 | 2050 | 1960 | 1960 | 1960 | 2000 | 2000 | 2000 | 2000 | 2000 | 2070 | 2070 | |
Top frame height H2 | 1820 | 1900 | 1900 | 2010 | 2010 | 2010 | 2000 | 2000 | 2000 | 2145 | 2145 | 2210 | 2210 | ||
Max Height working H3 | 3070 | 3820 | 3820 | 4050 | 4050 | 4050 | 3800 | 3800 | 3850 | 3995 | 3995 | 4225 | 4225 | ||
Distance from seat to top light L3 | 970 | 970 | 970 | 1000 | 1000 | 1000 | 1020 | 1020 | 1020 | 1020 | 1020 | 1060 | 1060 | ||
Wheel base L4 | 860 | 1020 | 1020 | 1260 | 1260 | 1260 | 1400 | 1400 | 1400 | 1515 | 1515 | 1680 | 1680 | ||
Front overhang Y | 300 | 300 | 300 | 385 | 350 | 350 | 320 | 320 | 320 | 483 | 483 | 490 | 490 | ||
Back overhang L5 | 290 | 250 | 250 | 365 | 365 | 365 | 330 | 330 | 330 | 400 | 400 | 425 | 425 | ||
Front wheel tread R | 700 | 700 | 700 | 1010 | 1010 | 1010 | 880 | 880 | 880 | 970 | 970 | 1000 | 1000 | ||
Back wheel tread P | 668 | 668 | 668 | 100 | 100 | 100 | 830 | 830 | 830 | 950 | 950 | 980 | 980 | ||
Min Floor clearance F | 90 | 90 | 90 | 130 | 130 | 130 | 100 | 100 | 100 | 135 | 135 | 135 | 135 | ||
Max lifting height H | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
Free lifting height H4 | 80 | 80 | 80 | 40 | 40 | 40 | 80 | 80 | 80 | 170 | 170 | 160 | 160 | ||
Fork changing S | 703/190 | 703/190 | 703/190 | 1040/200 | 1040/200 | 1040/200 | 925/200 | 925/200 | 925/200 | 1024/200 | 1024/200 | 1060/250 | 1060/250 | ||
Min Turning radius WA | 1200 | 1800 | 1800 | 2100 | 2100 | 2100 | 1950 | 1950 | 1950 | 2050 | 2050 | 2200 | 2500 | ||
Min Right angle aisle width RA | 2800 | 3400 | 3400 | 3850 | 3850 | 3850 | 3400 | 3400 | 3400 | 3760 | 3760 | 4100 | 4100 | ||
Frame angle a/β | (°) | 6°/12° | 6°/12° | 6°/12° | 6/12 | 6/12 | 6/12 | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
Max lifting speed without goods | mm/s | 400 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 | 400 | 380 | 450 | 425 | |
Max lifting speed with full goods | 350 | 220 | 220 | 260 | 260 | 260 | 300 | 300 | 300 | 300 | 280 | 280 | 260 | ||
Max speed without goods | Km/h | 13 | 12 | 12 | 14 | 14 | 14 | 15 | 15 | 15 | 15 | 15 | 14 | 14 | |
Max speed with full goods | 12 | 11 | 11 | 13 | 13 | 13 | 14 | 14 | 14 | 14 | 14 | 12.5 | 12.5 | ||
Max climbing angle | % | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤15 | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤15 | ≤15 | |
Whole machine weight | Kg | 1100 | 1580 | 1730 | 2650 | 2790 | 2890 | 2980 | 3100 | 3200 | 4050 | 4200 | 4950 | 5600 | |
Driving Wheel | 2x/2 | 2x/2 | 2x/2 | 2/2 | 2/2 | 2/2 | 2x/2 | 2x/2 | 2x/2 | 2x/2 | 2x/2 | 2x/2 | 2x/2 | ||
Tyre model | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | Solid tyre | ||
Front Tyre | 15x4 1/2-8 | 15x4 1/2-8 | 15x4 1/2-8 | 18×7-10 | 18×7-10 | 18×7-10 | 18*7-10 | 18*7 -10 | 18*7 -10 | 7.00-12 | 7.00-12 | 28X9-15 | 28X9-15 | ||
Rear Tyre | 3.50-5 | 3.50-5 | 3.50-5 | 16×6-8 | 16×6-8 | 16×6-8 | 18*6-8 | 18*6-8 | 18*6-8 | 18x7-8 | 18x7-8 | 18x7-8 | 18x7-8 | ||
Hand Brake | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | ||
Brake type | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | M-Hand | ||
Battery Volt/ capacity |
V/Ah | 4X12V/140 | 12Vx4/160 | 2X24V/150 | 48V/230 | 48V/320 | 48V/320 | 48/320 | 48/400 | 48/400 | 48/500 | 48/500 | 80/500 | 80/500 | |
Driving motor power | Kw | 3.0AC | 3.0AC | 4.0AC | 6.5AC | 6.5AC | 6.5AC | 7.5AC | 7.5AC | 7.5AC | 11AC | 11.0AC | 16.6AC | 16.6AC | |
pump power | 3.0DC | 3.0DC | 3.0DC | 5.5DC | 10AC | 10AC | 10AC | 10AC | 10AC | 12.0AC | 12.0AC | 13AC | 13AC |



1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
